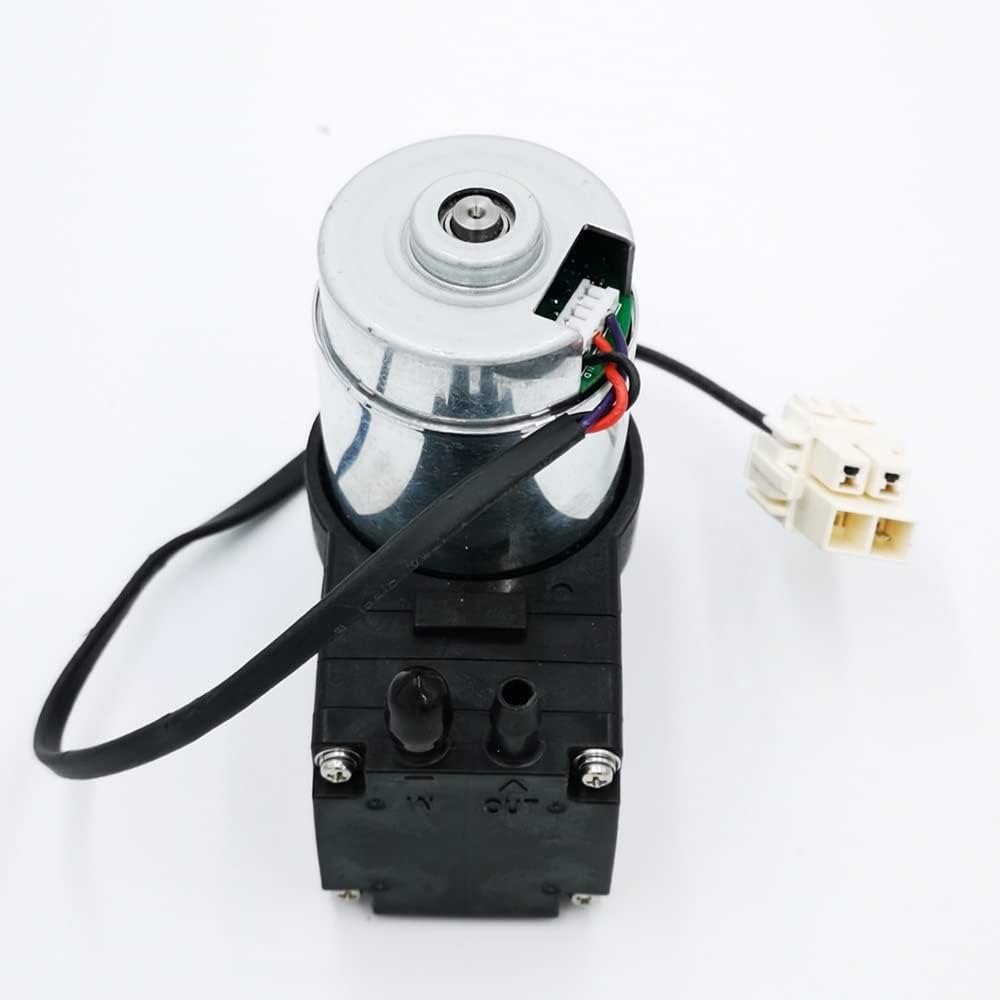

Power Pumps Brushless air Pump Vacuum Pump -80kpa 12-24v Large Flow Diaphragm Negative Pressure Pump Diaphragm Pump Sampling PUM Pump Accessories

12V test, positive pressure 0.18Mpa, negative pressure maximum -80kpa.24V test, positive pressure blocking limit can be 0.25Mpa, negative pressure -82kpa, 24V test flow is about 6L / minute.Brushless motor built-in drive circuit, so you must use 12-24V regulated power supply, the motor positive and negative lines are strictly prohibited to connect wrongly, the drive circuit will be burned, the motor red line power supply is positive, the black line power supply is negative, and the purple line signal is output.Note:1. Before placing an order, please notice that the item color and grain displayed in the pictures may be slightly different from the real object,2. Since the size above is measured by hand, the size of the actual item you received could be slight different from the size above.

• Application:Brushless air pump
• 12V test, positive pressure 0.18Mpa, negative pressure maximum -80kpa.
• 24V test, positive pressure blocking limit can be 0.25Mpa, negative pressure -82kpa, 24V test flow is about 6L / minute.
• Long working life, It is smooth operation, high efficiency, good performance. Small volume, low noise.
• Our small pump is designed with a mini size and light weight, it is easy and convenient to use.
